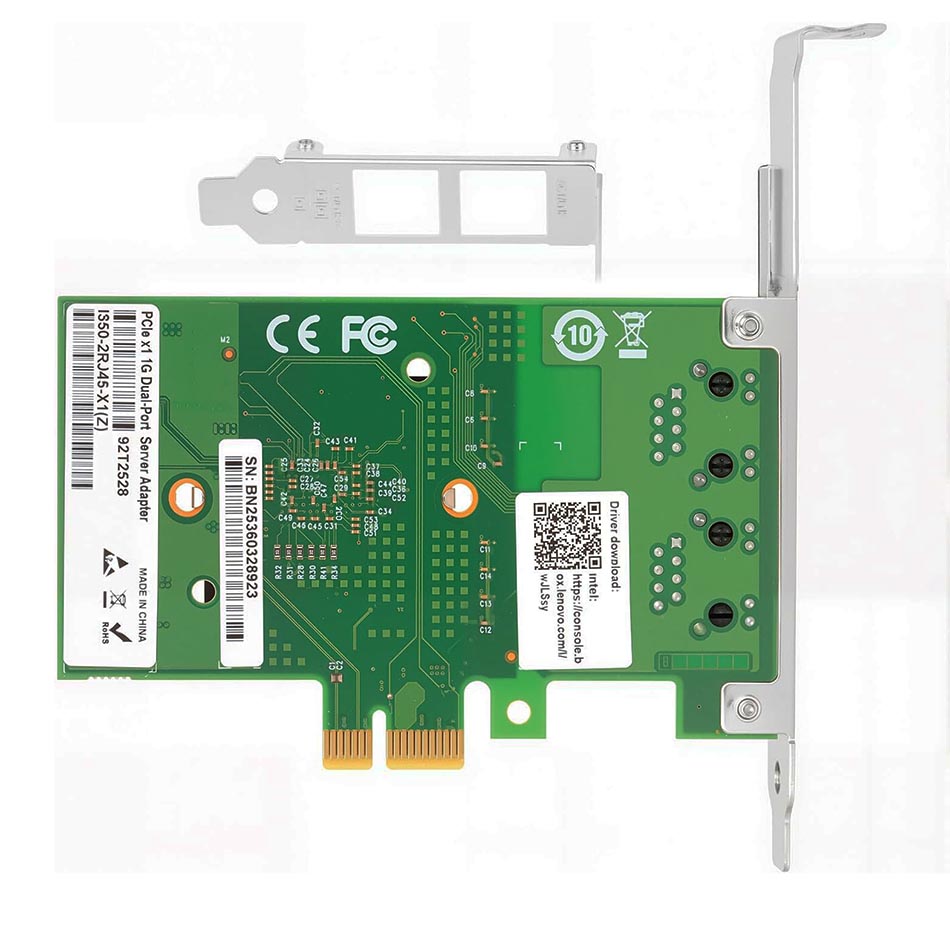

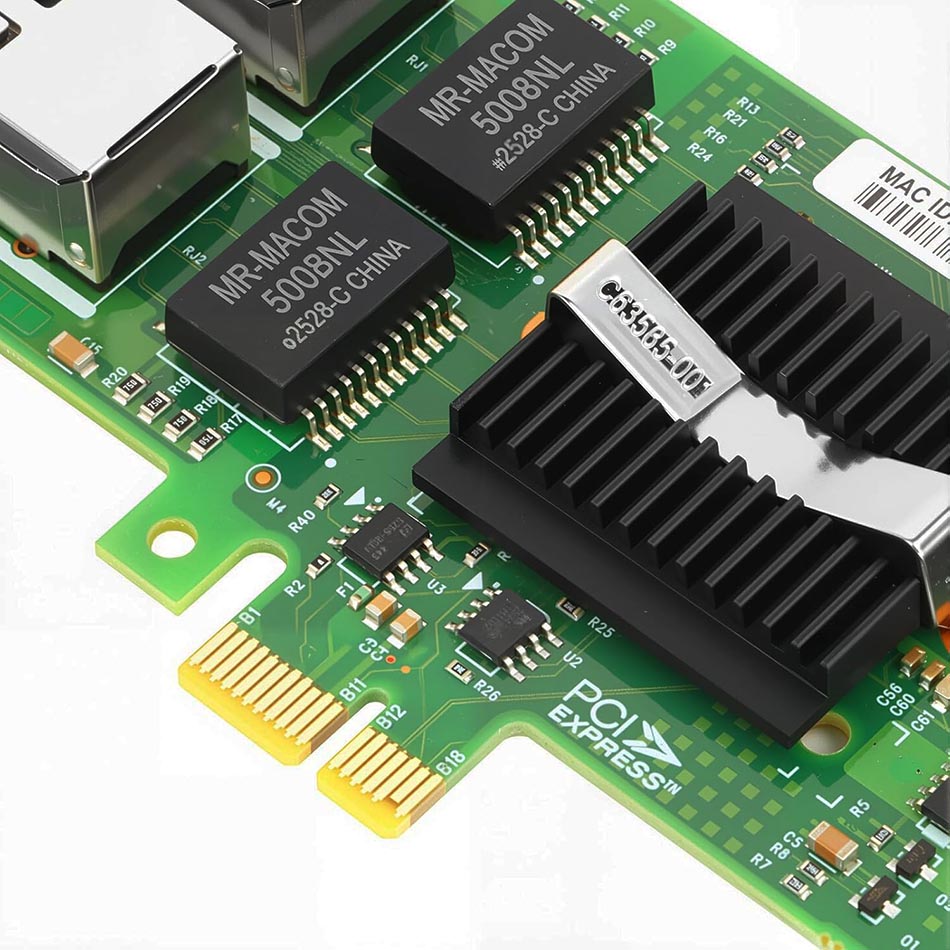

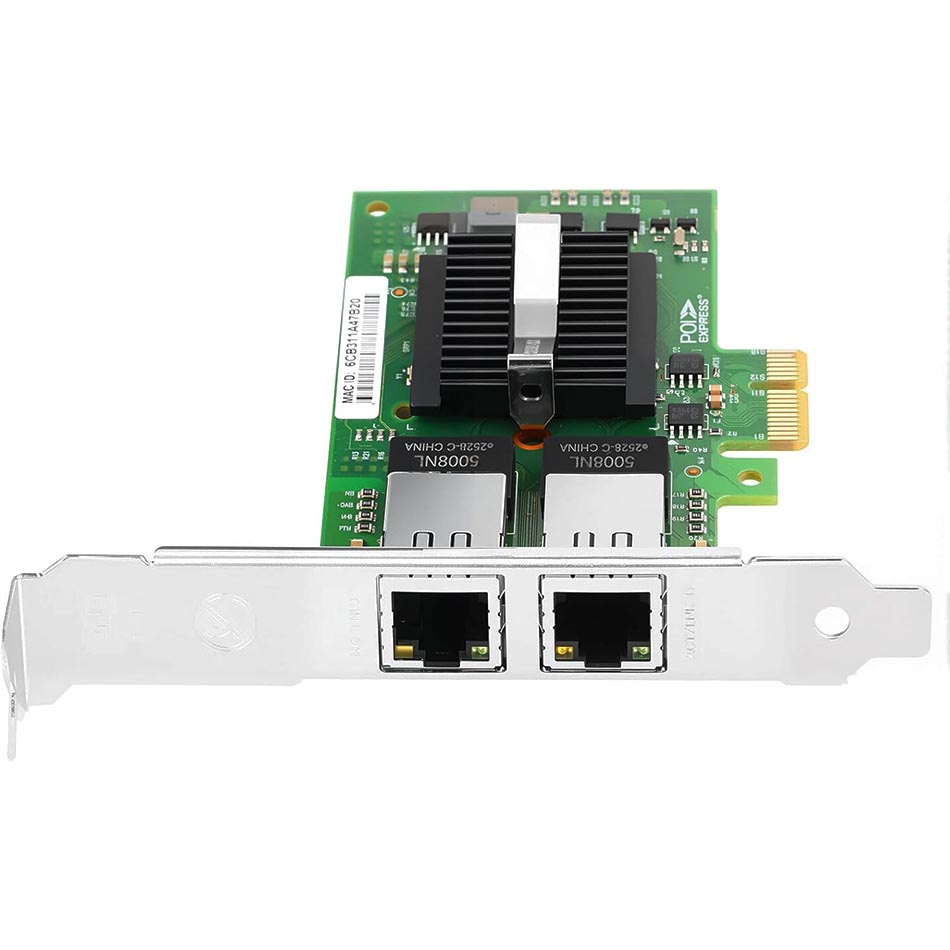

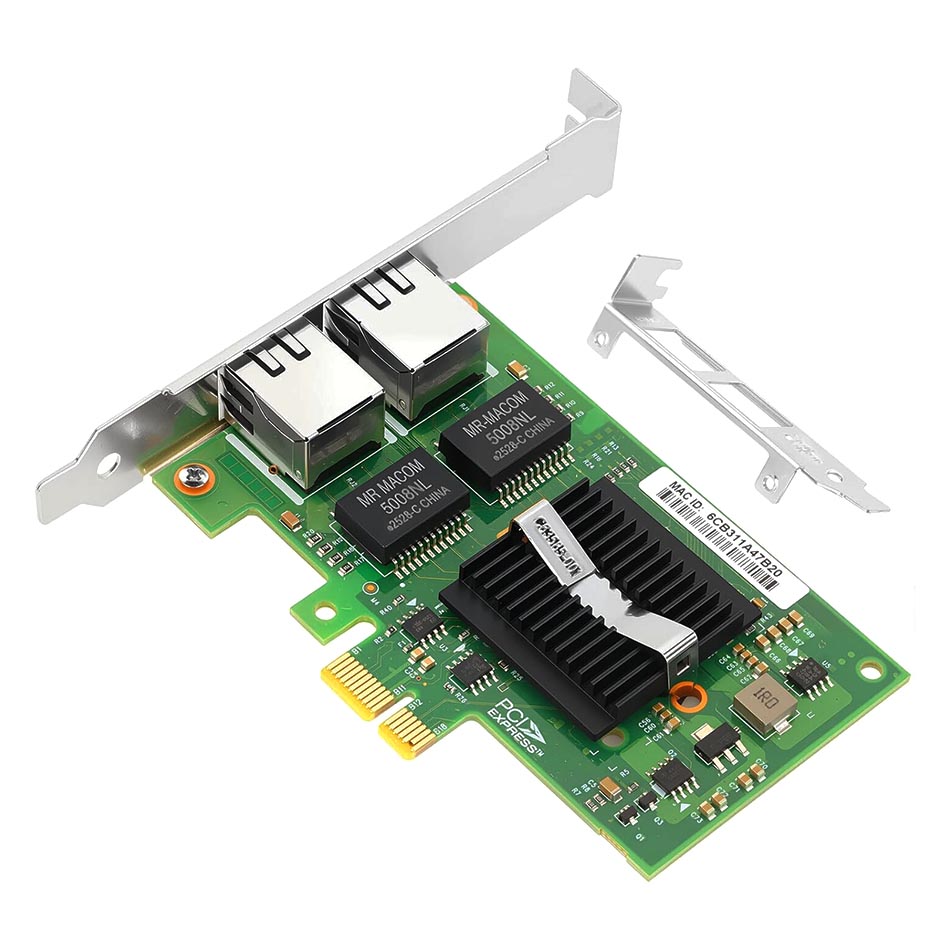

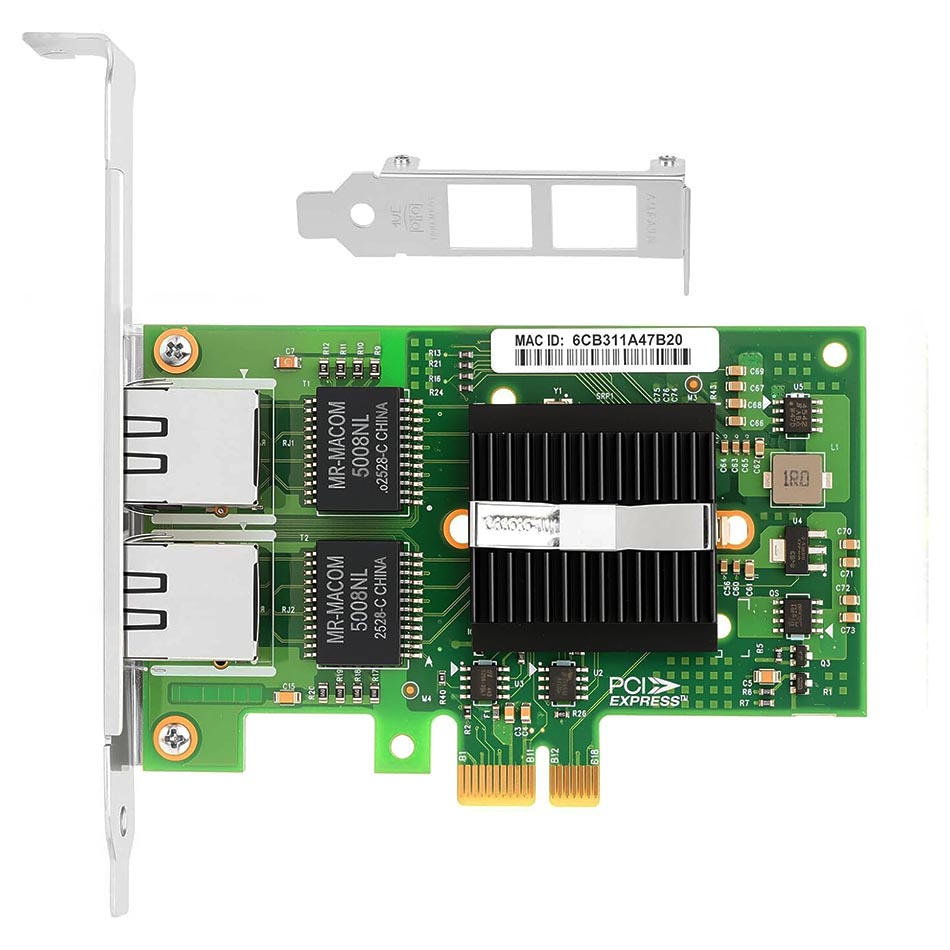

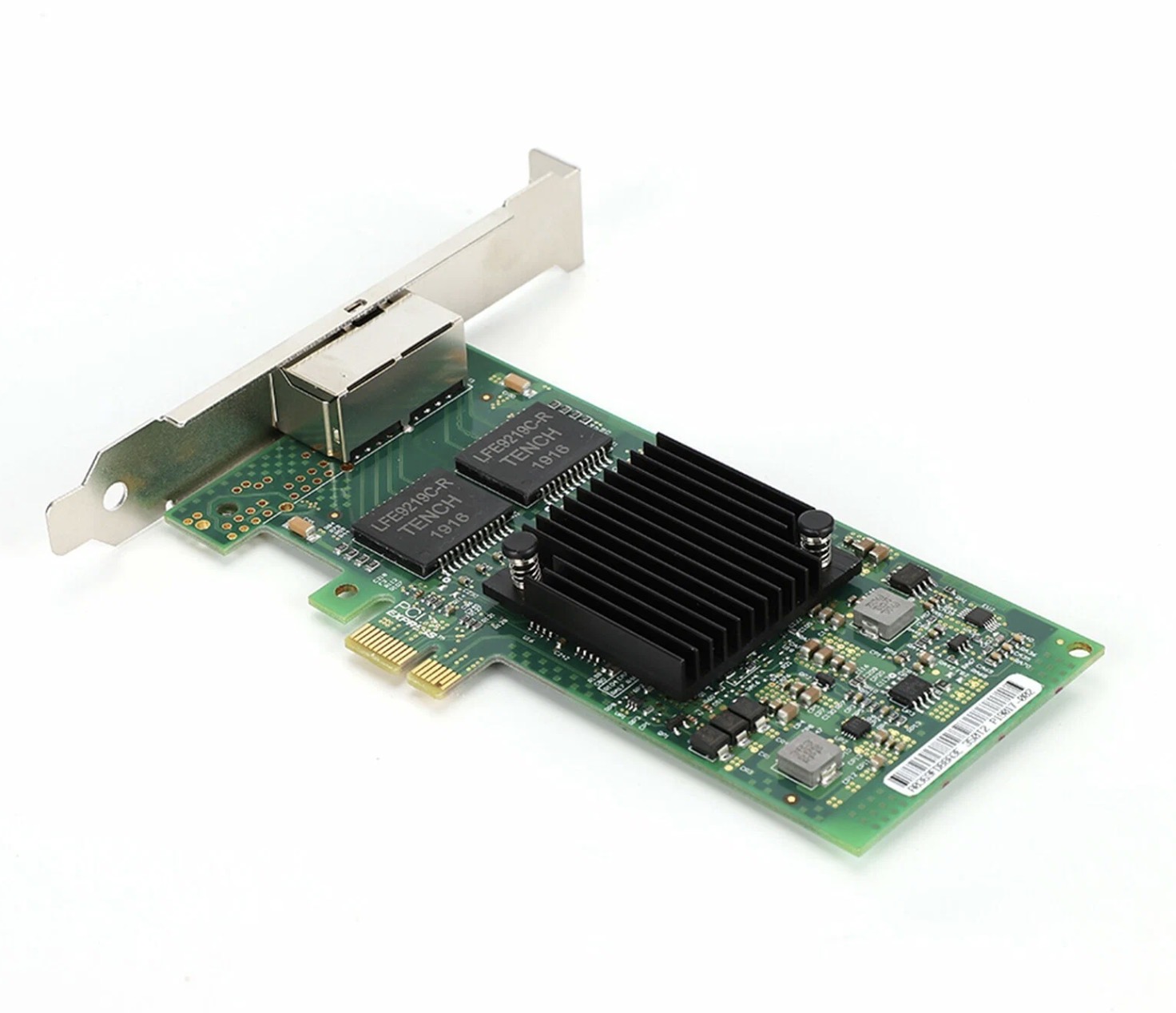

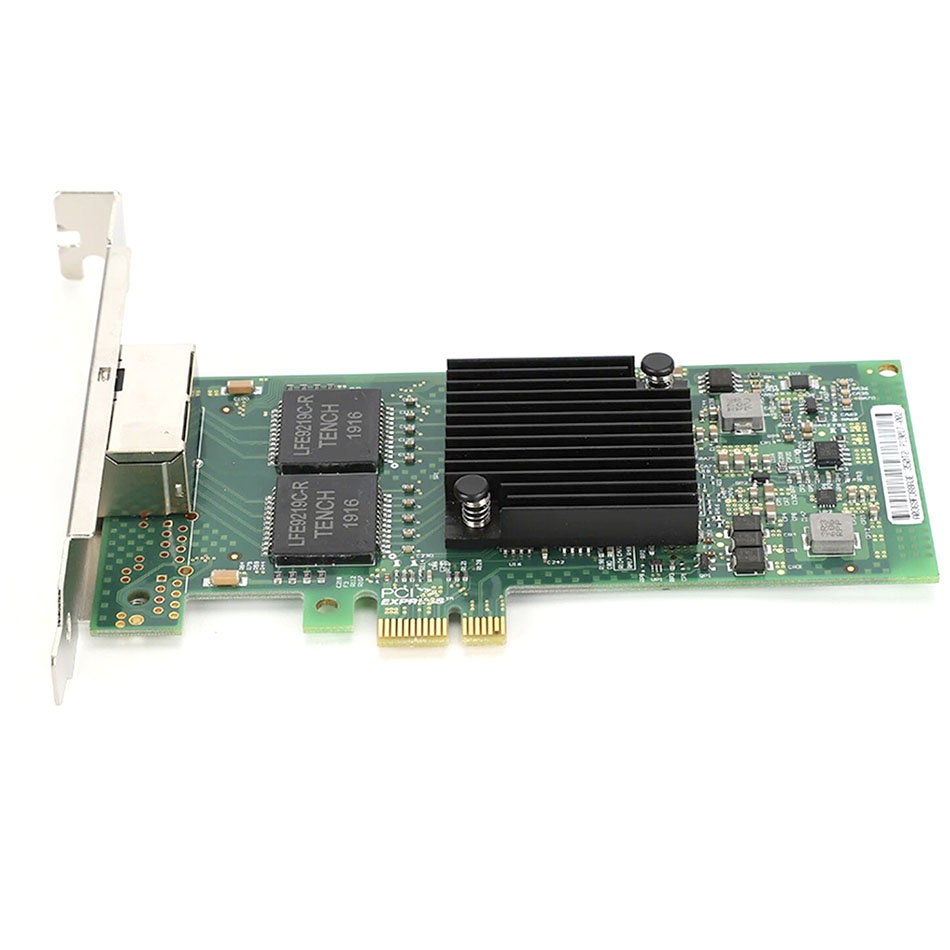

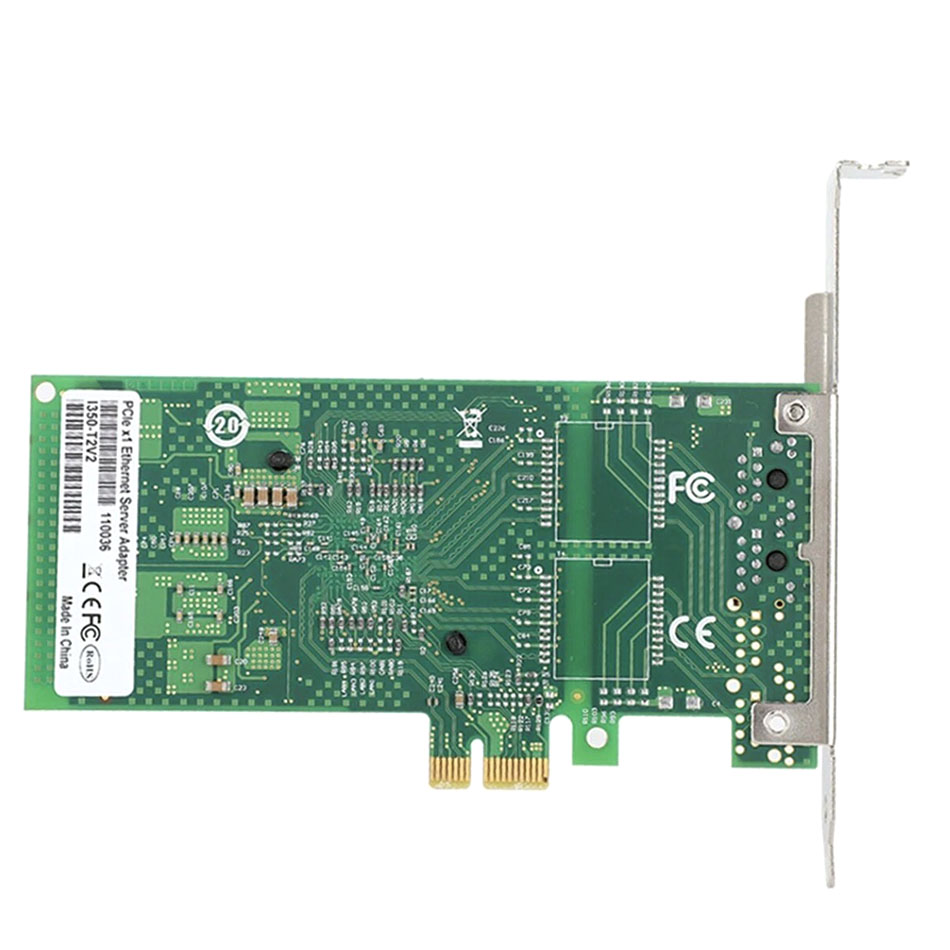

Card mạng PCIe x1 to 2 Port LAN Gigabit Ethernet i350-T2 cho máy tính PC, đồng bộ, máy chủ, máy tính công nghiệp
Tính năng nổi bật Card mạng PCIe 2 DUAL LAN i350-T2

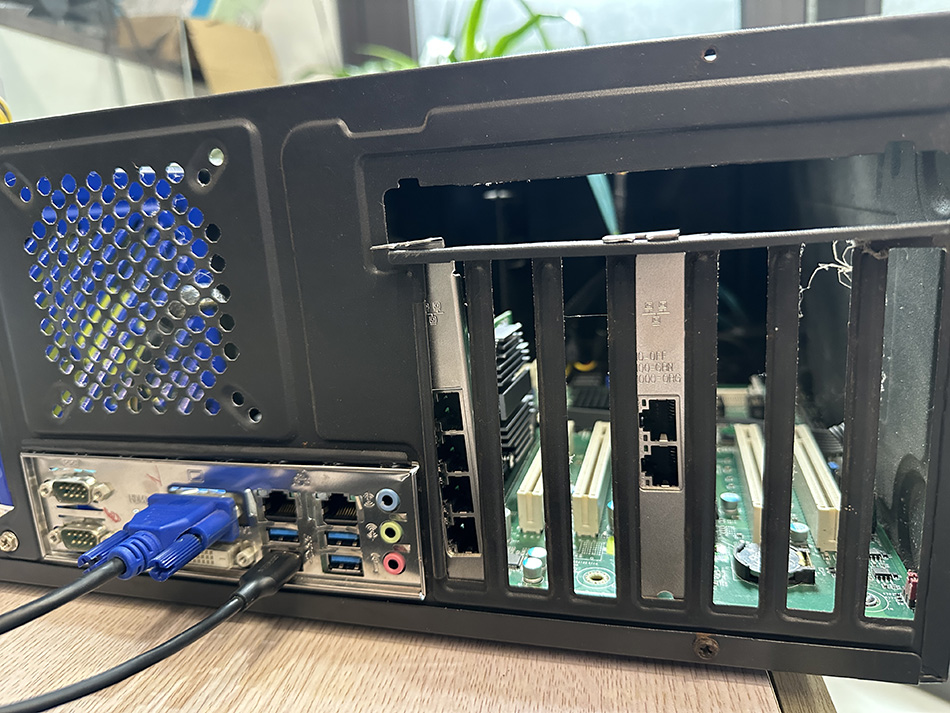

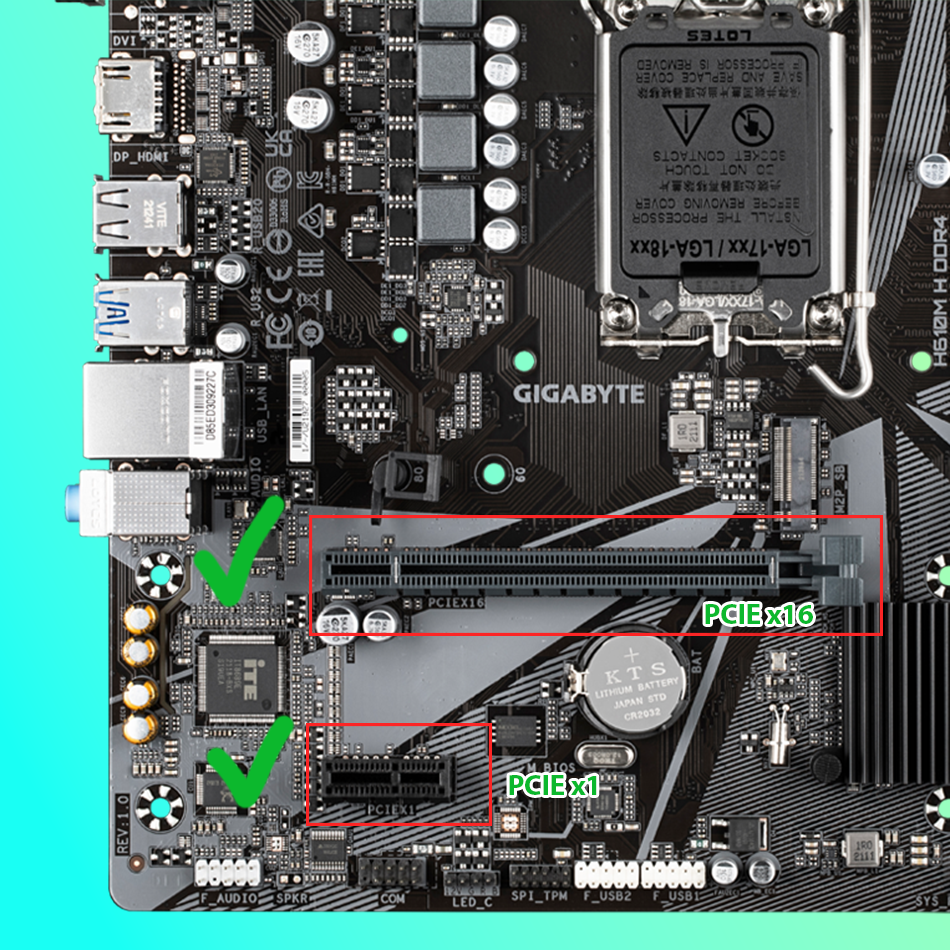

Card lạng LAN 2 Port chipset intel i350-T2, mở rộng thêm 2 cổng mạng LAN tốc độ 1 Gbps (10/100/ 1000 Mbps) cho máy tính PC lắp ráp, máy tính đồng bộ DELL HP Lenovo…Máy trạm, máy chủ server, máy tính công nghiệp. Chân cắm PCIe x1 tương thích rộng với tất cả mainboard hiện nay.
Dễ dàng sử dụng và lắp đặt.
Bảo hành: 12 tháng
Thông tin thêm
- Chipset: Genuine Intel I350AM2 Gigabit Ethernet controller chip, which provides high performance and reliability, just like the Intel I350-T2 PICE card.
- Transfer rate per port: 10/100/1000Mbps

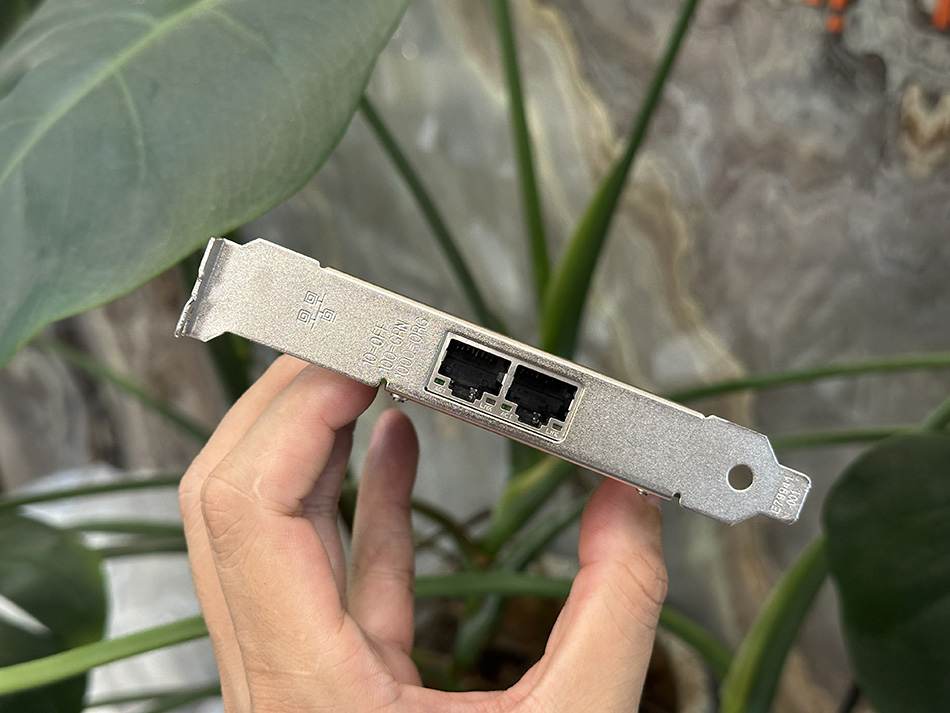

- Two 10/100/1000Mbps RJ45 ports, which can support Cat5 cables up to 100m. Supports link aggregation for Win10.

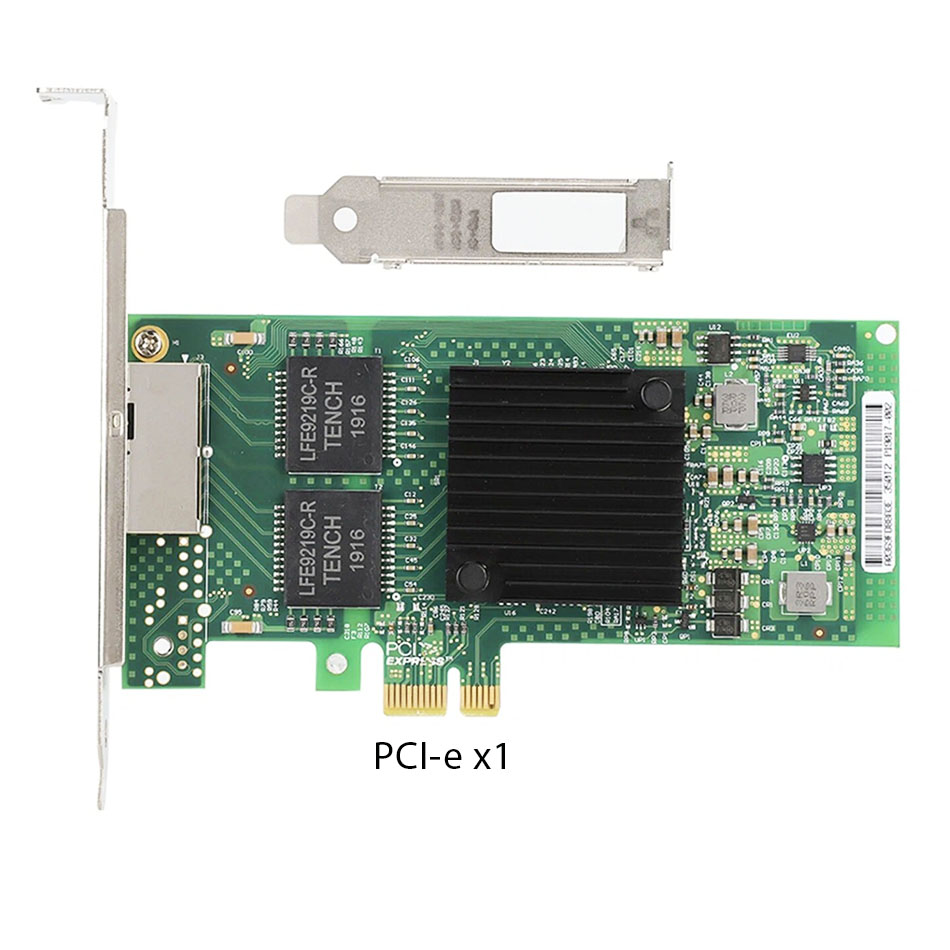

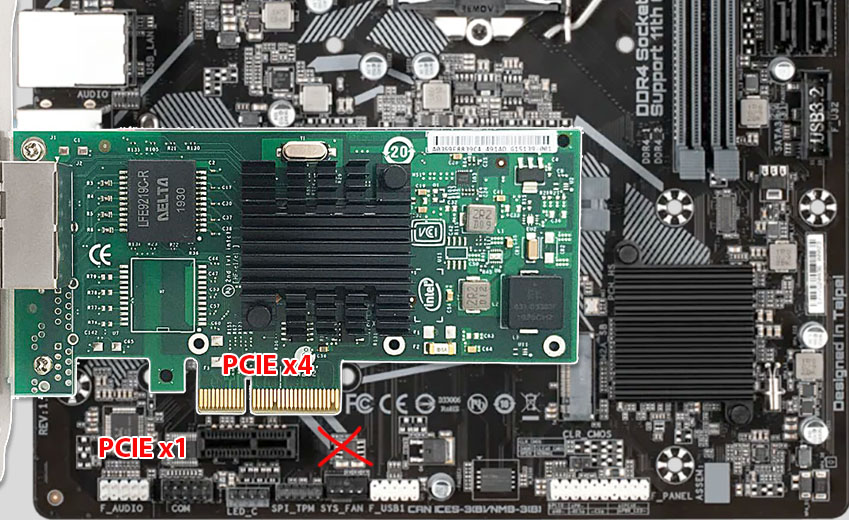

- Low Profile Full Height Mounts PCI Express* v2.1 (5.0 GT/s) x1 Lane. Compatible with x4, x8, x16 standard (except x1 slots) and low profile PCI Express* slots.
- Operating systems supported: Windows Server 2016*, Windows Server 2012 R2*/2012*, Windows Server 2008 R2*/2008*, Windows Server 2003 R2*/2003*, Windows 11/10*/8*/7*, Windows Vista*, Windows XP Professional, Linux* Stable Kernel Version 3.x, 2. .6x, Red Hat Enterprise Linux*5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, VMware ESX/ESXi*.
Thông số kỹ thuật card mạng PCIe x1 to 2 LAN
Model: I350-T2V2

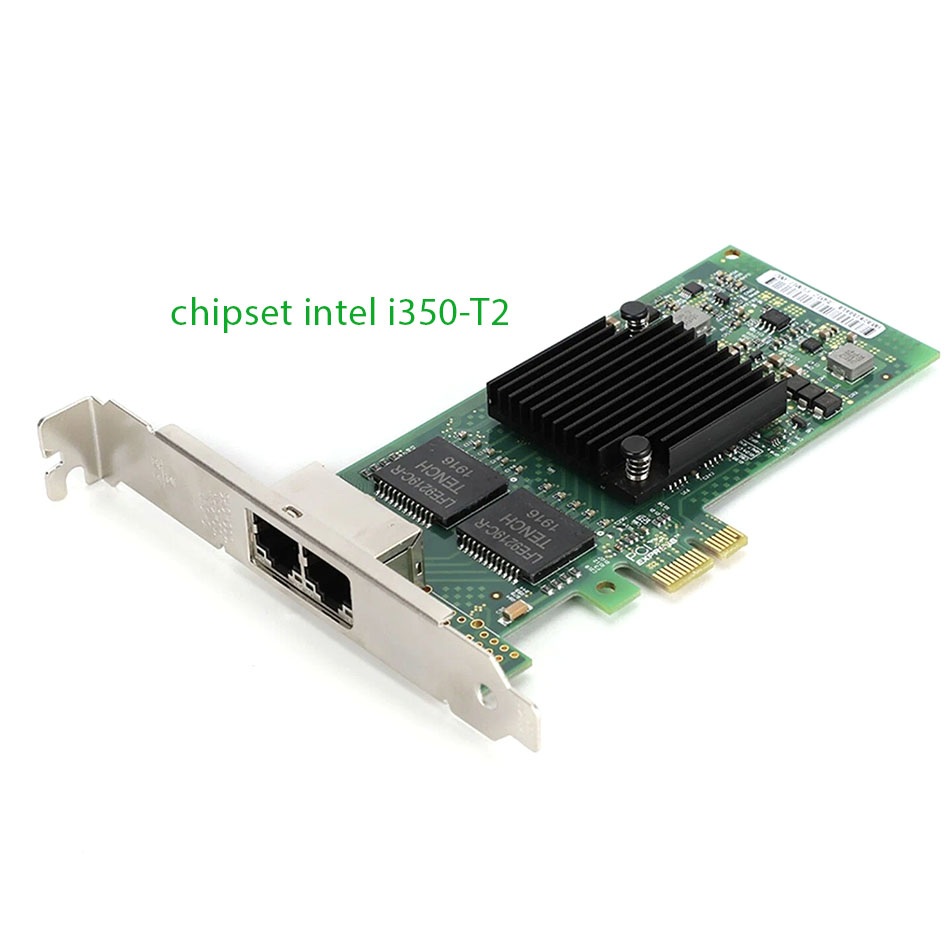

Ethernet controller: Intel i350AM2.
Data transfer rate: up to 1Gb/s per port

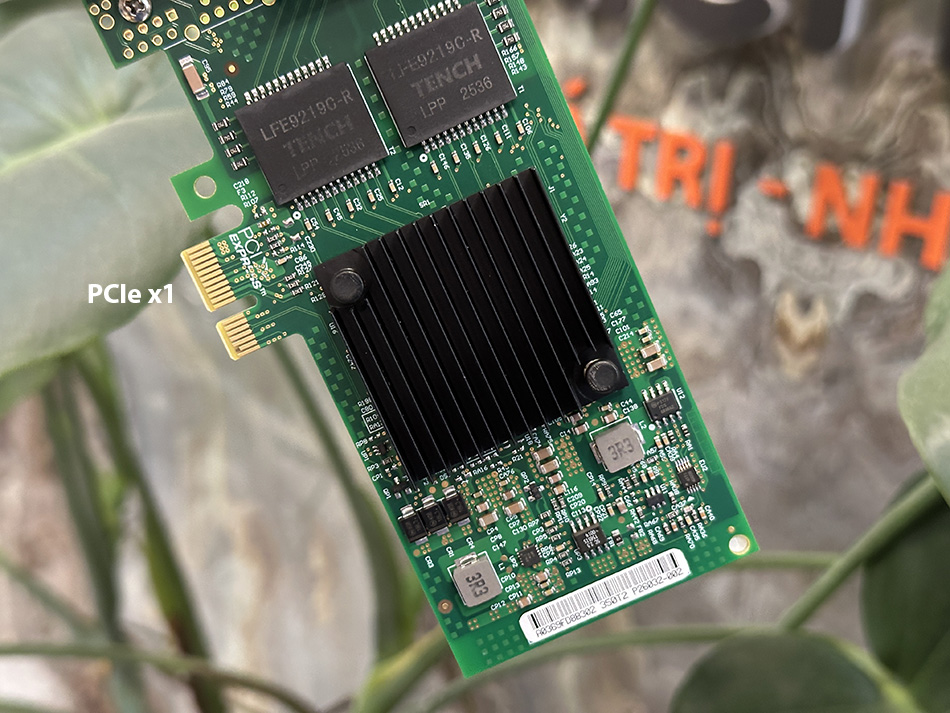

Bus interface: PCI Express 2.0 x 1.
Connection: 2 ports.
Connector type: RJ45 plug.

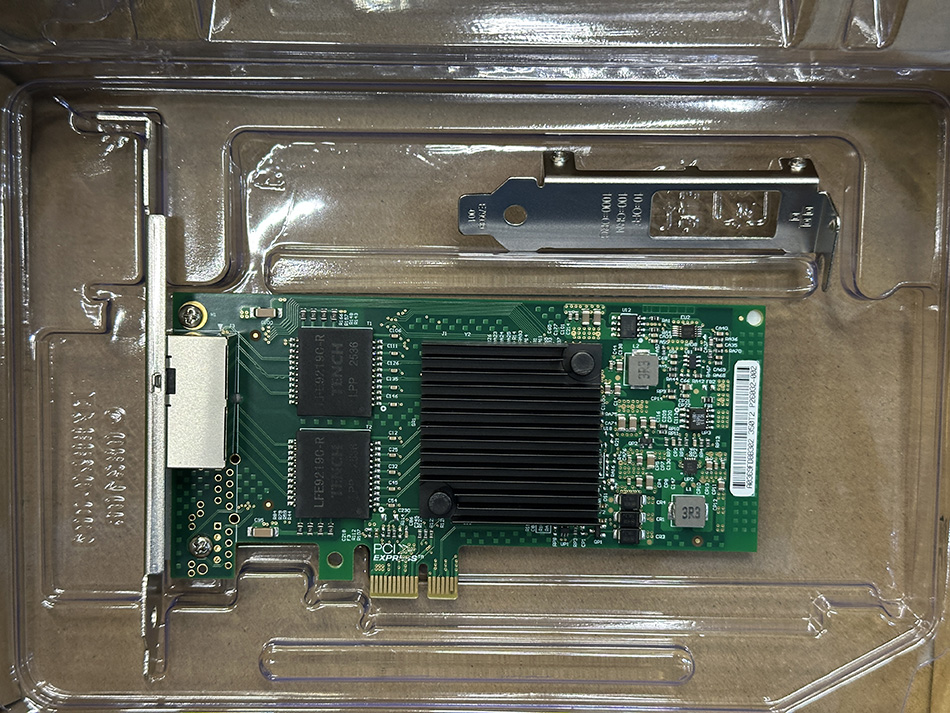

Bracket height: low profile and full height.
LED display: yes.
Vertical segment: server.
Cable medium: copper.
Cable type: RJ45 category 5 up to 100 m.
Supported operating systems: Windows Server 2016*, Windows Server 2012 R2*/2012*, Windows Server 2008 R2*/2008*, Windows Server 2003 R2*/2003*, Windows 11/10*/8*/7*, Windows Vista*, Windows XP Professional, Linux* Stable Kern. El version 3.x, 2.6x, Red Hat Enterprise Linux*5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, VMware ESX/ESXi*. Type of transmission medium: Class 3/4/5 UTP
Areas of application: server.
Working environment: 0°C + 55°C, humidity 85%.
Storage environment: -20°C + 65°C, humidity 85%.
Board version: REV:A.
Physical board size: 138 mm x 69 mm.
Port configuration : 10MB/100MB/1GbE
Intel Connect Virtual Technology: yes.
Speed and slot width: 5.0 GT/s, x4 lane.
System interface type: PCIe v2.1 (5.0GT/s).
On-chip Qos and traffic management: yes.
Flexible port partitioning: yes.
Virtualized device queue (¨VMDq): Yes
Stand by I-SIG*SR-IOV: yes.
Iwarp/RDMA : No
Intel Ethernet Source Management : Yes
Intel Data Direct/O technology: yes.
Intelligent offloading: yes.
Ethernet memory: iSCSI, NFS.
