Card PCI-E sang 2 COM RS232 Chip AX99100

  • Mã SP: 2455
  • Bảo hành: 6 tháng
  • Kho hàng: Sẵn hàng

Giá bán: 390.000đ 350.000đ

Card PCI-E sang 2 RS232 (COM, cổng DB9) dùng cho máy tính bàn, máy tính đồng bộ DELL, HP, Lenovo. Card PCI-e to COM sử dụng chipset ASIX AX99100  tương thích tốt với các thiết bị nối tiếp serial

- +
Hỗ trợ cài đặt driver, phần mềm qua Zalo Video, Team-ultraviewer
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 6 ngõ 217 Định Công Thượng, P Định Công, Q Hoàng Mai, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (8h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước) Giao hàng sau giờ hành chính (vui lòng liên hệ trước)

Card PCI-E sang 2 COM RS232 Chip AX99100

Card PCI-E sang 2 RS232 (COM, cổng DB9) dùng cho máy tính bàn, máy tính đồng bộ DELL, HP, Lenovo. Card PCI-e to COM sử dụng chipset hãng ASIX AX99100 tương thích tốt với các thiết bị nối tiếp serial so với các dòng chip WCH382/384

Sử dụng kết nối máy tính với các thiết bị: POS, máy cnc, máy quét thẻ, máy lập trình, thiết bị đo đạc, máy tự động, máy công nghiệp, thiết bị y tế…

Giao tiếp PCI-e 1x (dùng cho 1X hoặc 16X…)

Hỗ trợ 2.5 Gbps PCIE bus với full duplex

Đầu ra: 2 X RS232/COM/DB9 Male (chân đực)

Hệ điều hành: Windows 9X/Me/2000/XP/2003/Vista, Linux, 7, 8, 10, Window 11(32bit, 64bit)

Bảo hành: 06 tháng

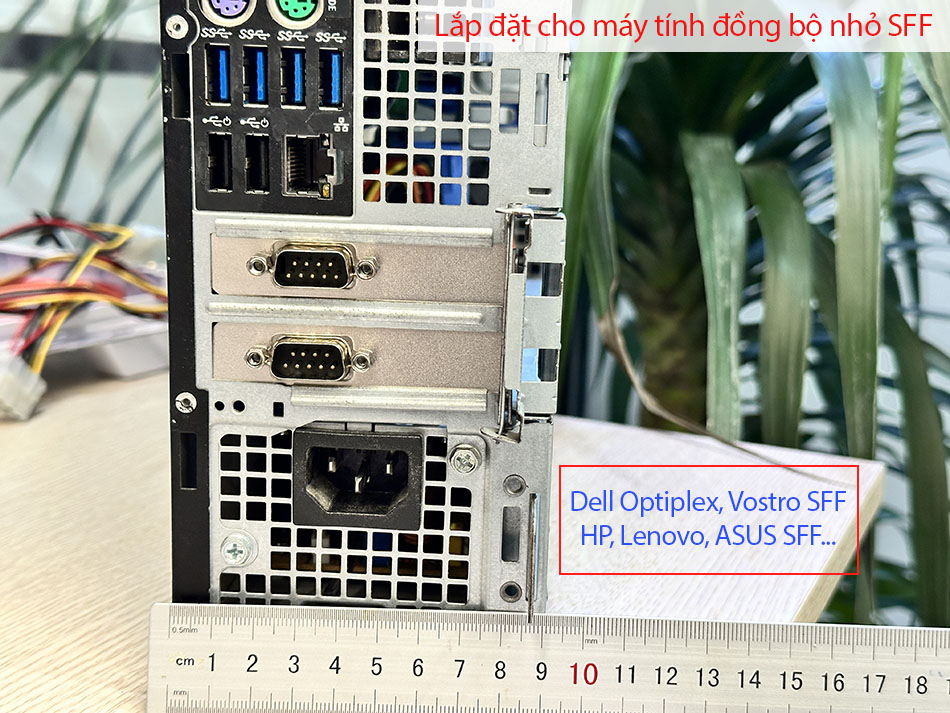

Sản phẩm đi kèm thêm 2 chắn sắt 8cm Low profile bracket. Sử dụng cho máy tính đồng bộ nằm ngang SFF, Slim PC, SFF….DELL HP LENOVO Fujitsu.

Thông số kỹ thuật Card PCIe to 2 RS232 AX99110

Features
1) PCI Express
Single-lane (X1) PCI Express End-point Controller with PHY integrated
Compliant with PCI Express 2.0 Gen 1
Compliant with PCI Express card specifications
Compliant with PCI Power Management 1.2
Supports both legacy and MSI Interrupts
Supports ASPM Power Management
Please note some sections of the manual are only applicatable for the production that have such functions.
2) Serial Port
Dual or Quad UARTs
Supports RS-232
Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control
Supports Hardware, Software Flow Control
Supports 5, 6, 7, 8 and 9-bit Serial format
Supports Even, Odd, None, Space and Mark parity
Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Supports remote wakeup and power management features
Serial Port transceiver shutdown support
Supports Slow IrDA mode (up to 115200bps) on all Serial Ports
Supports multi-drop application for 9-bit mode
Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin
Supports DMA burst transfer
Operating temperature range: 0 to 70°C or -40 to +85°C (option)
Software Support
Windows XP/2003 Server/Vista/7/8.x/10
Linux Kernel 2.6.15 and later
Android 1.x/2.x/3.x/4.x/5.x

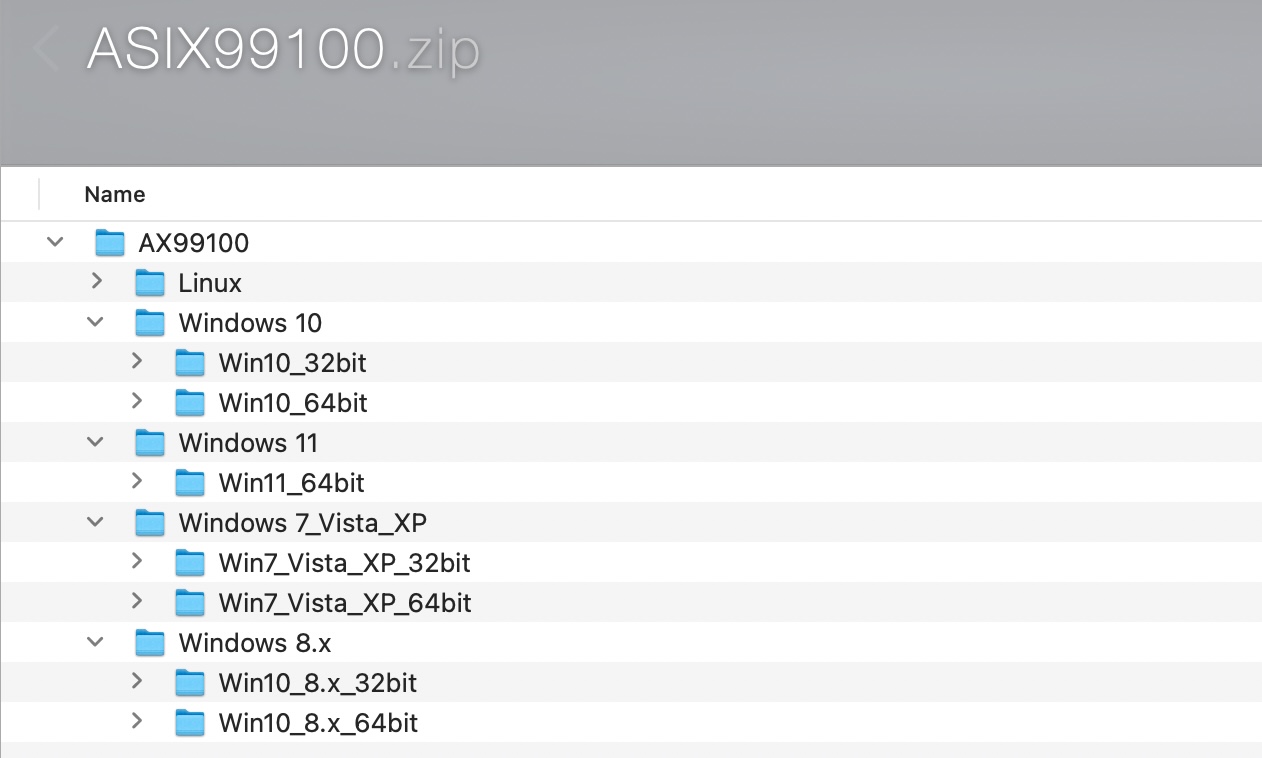

Link tải driver card chuyển đổi PCIE sang 2 COM RS232 AX99100
